Product Classification
TAGA-H
Van Truck Pickup Truck Refrigerated Truck Tank Truck Medical Special Vehicle
TAGA-H
TAGA-H
TAGA-H
TAGA-H

TAGA-H

Characteristics
Vehicle Category
Displacement
3
Engine Power(HP)
130
Torque
320
Wheel Base(mm)
3096
Energy Type
Diesel

Technical parameter
Level Medium pickup truck
Energy type Diesel
Engine 3.0T 143 horsepower L4
Maximum power (kW) 105 (143Ps)
Maximum torque (N·m) 320
Transmission 5-speed manual
Length x width x height (mm) 5350x1885x1825
Body structure 4 doors, 5 seats, two rows
Length (mm) 5350
Width (mm) 1885
Height (mm) 1825
Wheelbase (mm) 3096
Front track (mm) 1570
Rear track (mm) 1570
Body structure Two rows
Number of doors (pieces) 4
Number of seats (pieces) 5
Fuel tank capacity (L) 76
Engine model 4KH1CT6H1
Displacement (mL) 2999
Displacement (L) 3
Intake form Turbocharged
Cylinder arrangement L
Number of cylinders 4
Number of valves per cylinder 4
Valve train DOHC
Maximum horsepower (Ps) 143
Maximum power (kW) 105
Maximum torque (N·m) 320
Fuel supply Direct injection
Transmission description 5-speed manual
Number of gears 5
Transmission type Manual transmission (MT)
Drive mode Front engine, rear drive
Front suspension type Double wishbone independent suspension
Rear suspension type Integral bridge non-independent suspension
Steering type Hydraulic power assist
Body structure Non-load bearing
Front brake type Ventilated disc type
Rear brake type Drum type
Front tire size 245/70 R17
Rear tire size 245/70 R17
ABS anti-lock brake ●Standard
Brake force distribution (EBD/CBC, etc.) ●Standard

Tips: Some special vehicles can be customized according to requirements.

Efficient, Reliable, and Powerful Engine

Powerful Performance with Strong Reserve Power, Low Fuel Consumption, and Minimal Noise.

  • Strong Power: ISUZU 4K engine with 1800 bar common rail and MUA transmission.
  • High Efficiency: Optimized intake/exhaust and water-cooled turbocharger; proven by 1,500-hour durability test.
  • Low Fuel Consumption: Meets Stage III standard (GB20997-2015) with ample reserve power.
  • Low Noise: NVH system cuts noise by 15%.
  • Low Operating Cost: DPF + DOC tech, no urea needed; easier maintenance, lower costs.
  • High Adaptability: Engine redesigned for domestic fuel, enhancing reliability.

Rigorous Extreme Environment Testing

High Temperature, High Altitude, and Cold Climate Trials, The TAGA underwent a complete validation process—from design verification and laboratory bench testing to intensive proving ground trials and extreme environment testing.
To ensure reliability, tests were conducted in China’s harshest conditions.

Cold climate: down to –45°C in the coldest regions
High temperature: above 48°C in extreme heat
High altitude: over 5,000 meters on the Tibetan Plateau

The young TAGA has crossed mountains and rivers across the country, fearlessly facing extreme weather, rugged terrain, and complex road conditions—proving its strength and durability in every challenge.

SRS: Dual Front Airbags Standard Across All Models

  • Comprehensive Crash Analysis for Maximum Safety
    Multiple professional crash simulations were conducted across five speed levels and four collision types. The vehicle passed regulatory crash tests in one attempt, offering occupant protection that exceeds the required safety standards by a factor of two.
  • The TAGA pickup is designed with six airbag deployment zones reserved, and is equipped with features such as ESP and front seatbelt reminders. The top configuration meets the C-NCAP five-star safety rating.

ABS + EBD

Equipped Standard Across All Models with Advanced Electronic ABS + EBD
Features oversized brake discs and calipers to ensure high-efficiency braking performance, greatly enhancing driving stability and safety.

Comprehensive Sedan-Level Safety Features

Equipped with dual-mode navigation, dash cam, tire pressure monitoring, front and rear parking sensors, blind spot camera with dual-curvature side mirrors, visual reverse camera, and anti-glare interior rearview mirror.
A full suite of advanced safety features ensures greater driving safety and peace of mind.

Multiple Validation Methods to Ensure Durability

Long lifespan, stable and reliable performance, leading the industry.

Analytical Optimization:
Comprehensive professional analysis and optimization to validate the stiffness, strength, and modal performance of various vehicle components and systems.
Bench Testing:
Strict durability tests on individual components and reinforced bench tests on the entire vehicle to ensure long-term reliability.
Proving Ground Testing:
Durability testing conducted across more than ten types of road conditions—including torsional roads, Belgian pave, gravel roads, uneven surfaces, and multi-gradient slopes—simulating over 300,000 kilometers of real-world usage.

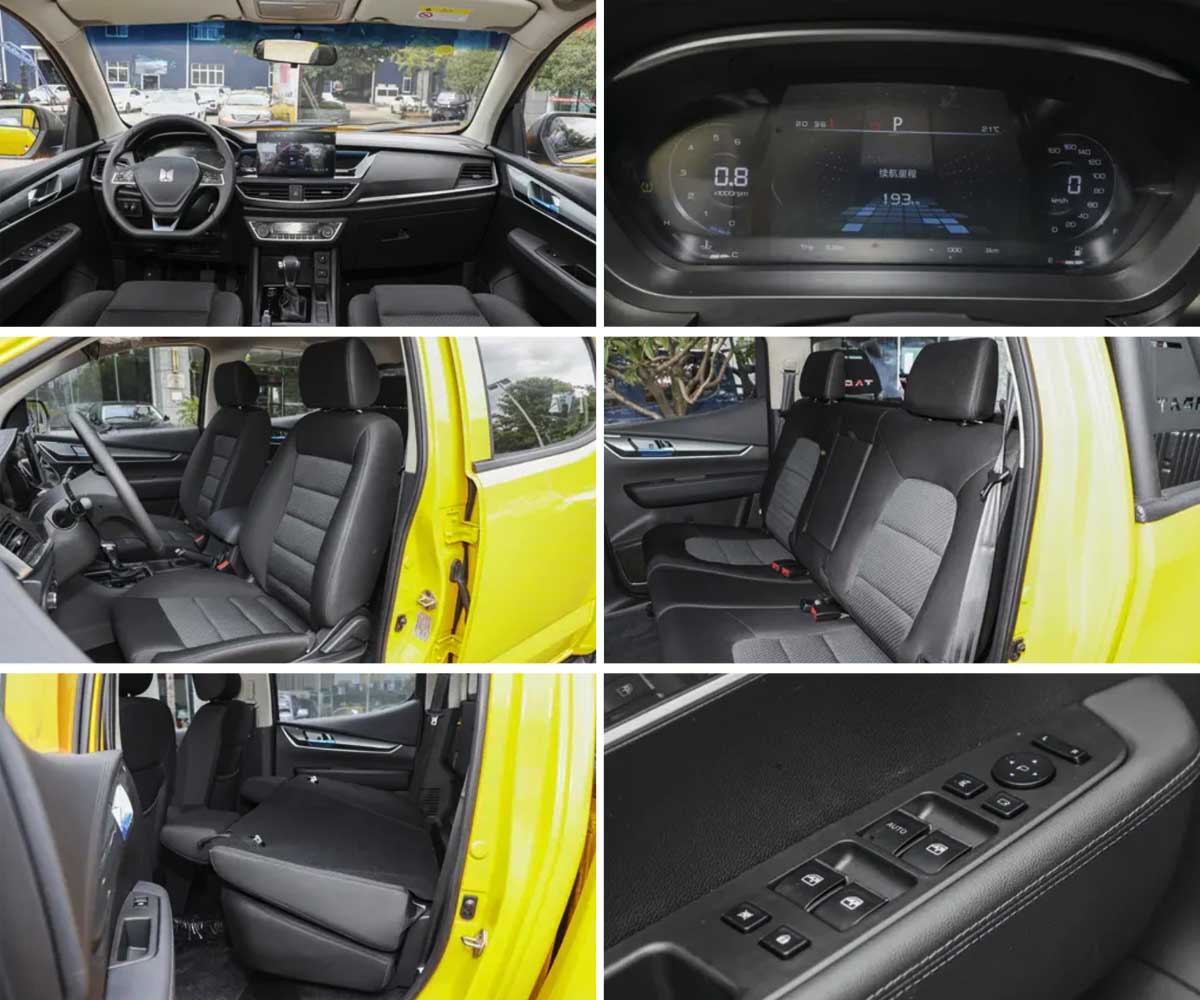

Interior

Warm and Comfortable, Intelligent and Stylish — Showcasing Sedan-Level Refinement

  • User-Friendly Design:
    Well-organized center console layout with clearly defined functional zones; spacious and comfortable cabin for enhanced driving experience.
  • Advanced Technology:
    Human-machine interaction interface, cruise control, trip computer, and in-vehicle Wi-Fi provide intelligent convenience.
  • Exquisite Craftsmanship:
    Premium materials, refined workmanship, and meticulous detailing reflect superior quality and a sense of luxury.
  • Color Scheme:
    Dark tones accented with bright trims convey a sense of stability, simplicity, and modern fashion.

Smart and User-Friendly Premium Features

Enhancing Driving Enjoyment and Travel Convenience

In-Vehicle Intelligent Multimedia System

Integrated with advanced smart technologies such as voice control, dual-mode navigation, smartphone connectivity, onboard network & Wi-Fi, visual imaging, blind spot monitoring, tire pressure monitoring, front/rear parking sensors, and Bluetooth.
Delivers a rich, intelligent driving experience for endless enjoyment.

3.5-Inch Color LCD Multi-Function Trip Computer

Real-time vehicle data monitoring with intelligent features such as tire pressure monitoring, radar sensing, average fuel consumption, and more.
Delivers a rich display of dynamic information, making every drive more enjoyable.

Professionally Tuned for Sedan-Level Comfort

  • Handling and Stability Calibration
    Equipped with a double-wishbone independent suspension with coil springs, rack-and-pinion steering system, and optimized body mounting layout.
    The entire vehicle has been professionally tuned and refined by top domestic and international experts, resulting in significant improvements in stability, steering responsiveness, and ride comfort — far surpassing other pickups in its class.
  • NVH Calibration
    Professional NVH analysis conducted on chassis, body stiffness, and structural modes.
    Comprehensive optimizations enhance overall NVH performance, delivering cabin quietness that outperforms many joint-venture pickup brands — quiet but never dull.
  • K&C Testing
    Constant Radius Cornering Test
    NVH Noise Optimization Testing
    Sound Insulation Performance Test
    Steering Wheel Modal Analysi
