Custom ISUZU Pickup solutions are designed for professional buyers who require more than a standard utility vehicle. Whether your focus is emergency response, aerial maintenance, cold chain logistics, or KD assembly projects, a customized ISUZU pickup provides structural reliability, payload strength, and adaptable chassis configuration suitable for multiple industries.
Below is a structured overview of four major customization directions, including technical specifications and application scenarios.

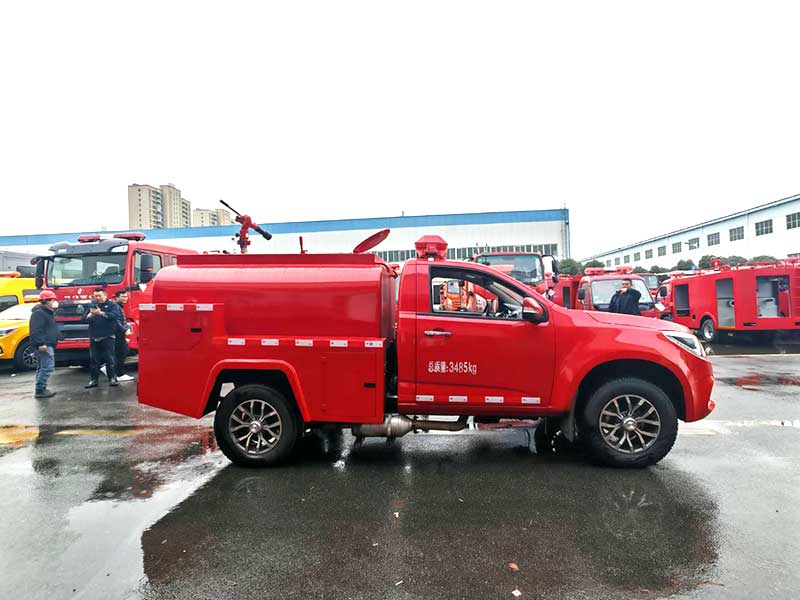

A Custom ISUZU Pickup for firefighting is designed for rural areas, industrial zones, mining sites, and remote infrastructure projects where maneuverability is critical.
Base Chassis: ISUZU 4×4 Pickup
Engine: 2.5L–3.0L Turbo Diesel
Power Output: 136–190 HP
Transmission: 5MT / 6MT / 6AT
Drive Type: 4WD with high/low range
Water Tank Capacity: 500–1000 liters
Foam Tank (Optional): 50–100 liters
Fire Pump Flow Rate: 30–40 L/s
Pump Pressure: 1.0–1.6 MPa
Max Speed: 140 km/h
Compact size for narrow access roads
Independent fire pump system
Quick deployment hose reel
Optional lighting tower and rescue equipment rack
This configuration is suitable for government procurement, industrial safety fleets, and oil & gas field operations.

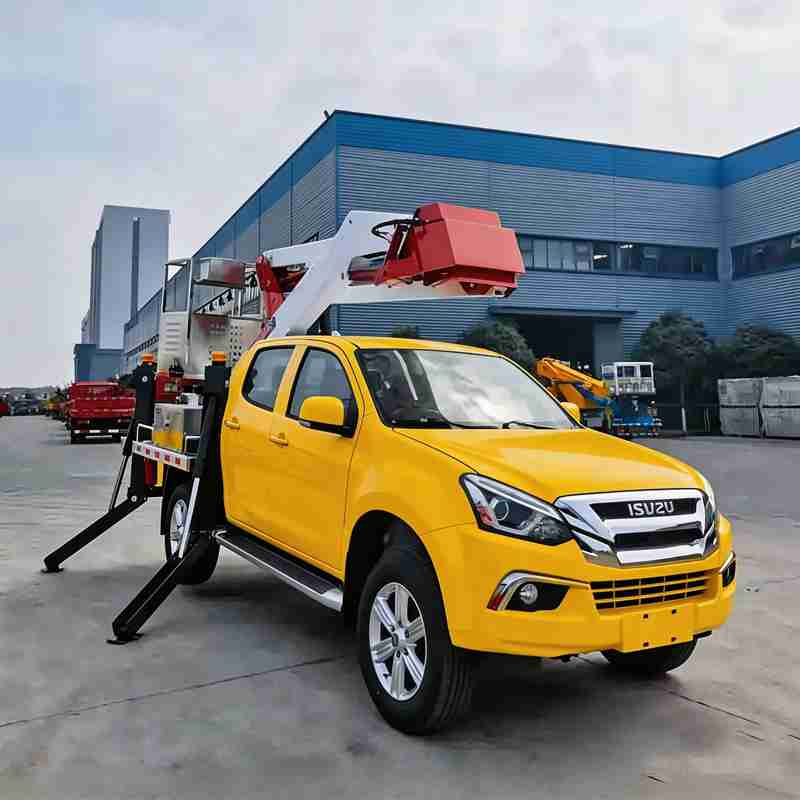

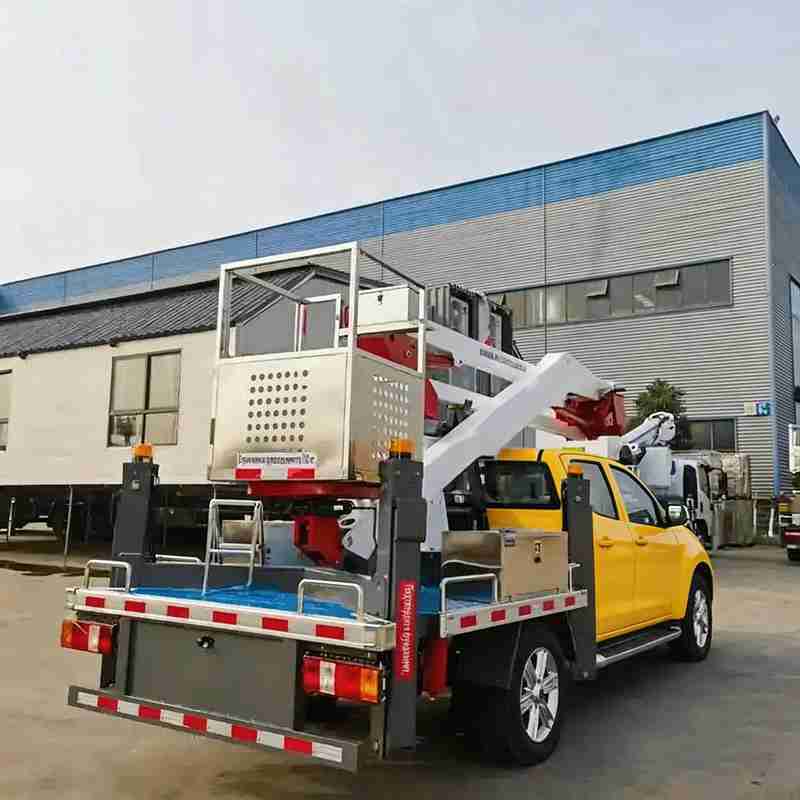

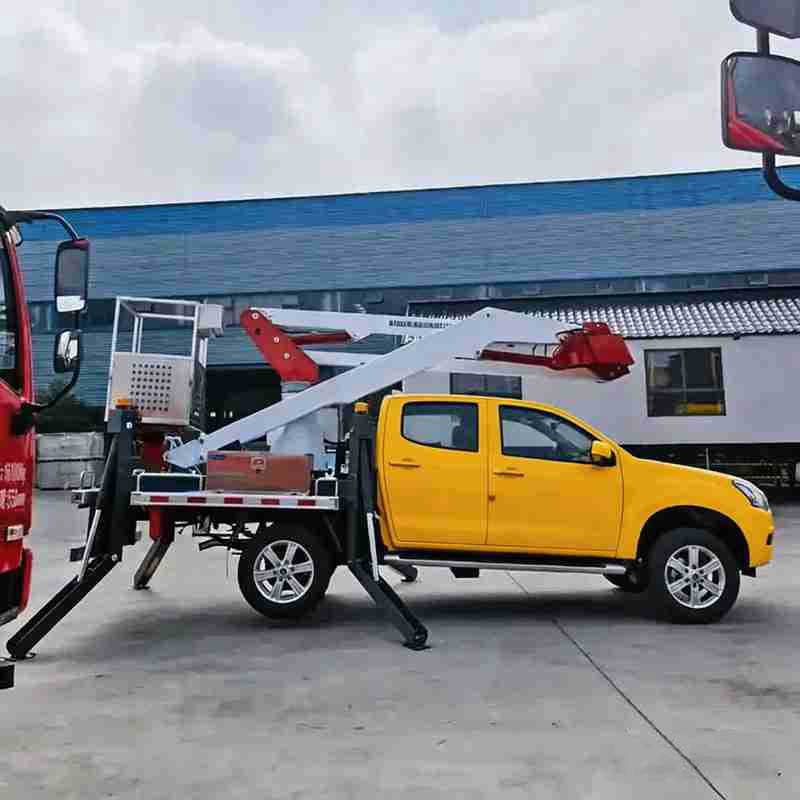

A Custom ISUZU Pickup configured with an aerial work platform serves power companies, telecom providers, municipal maintenance teams, and signage contractors.
Base Chassis: ISUZU 4×2 or 4×4 Pickup
Engine: 2.5L–3.0L Turbo Diesel
Rated Power: 140–190 HP
Working Height: 10–14 meters
Working Radius: 6–8 meters
Bucket Load Capacity: 200 kg
Rotation Angle: 360° continuous
Outriggers: Hydraulic, 4-point stabilization
Hydraulic Control: Electric-hydraulic dual control system
Strong chassis reinforcement for boom stability
Compact turning radius
Reliable hydraulic safety lock system
Optional insulated bucket for electrical works
This solution ensures mobility in urban and semi-urban environments while maintaining professional-grade lifting capability.

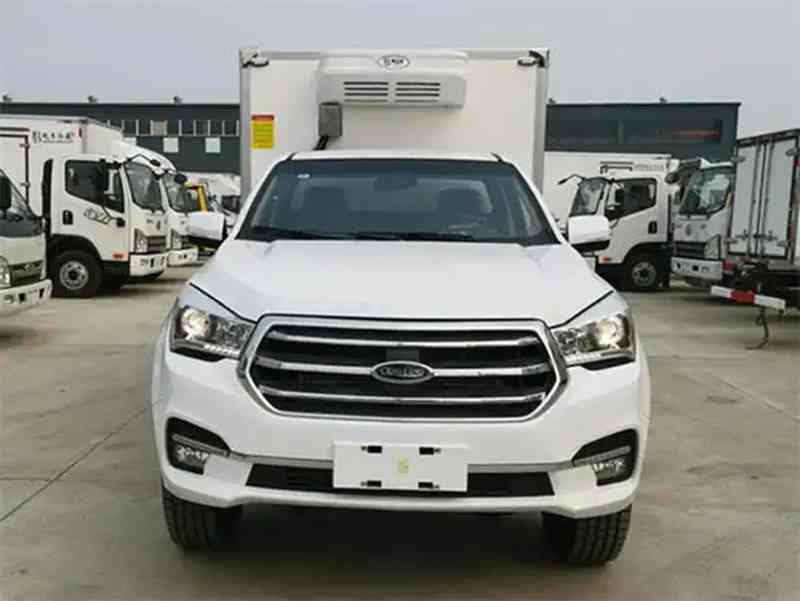

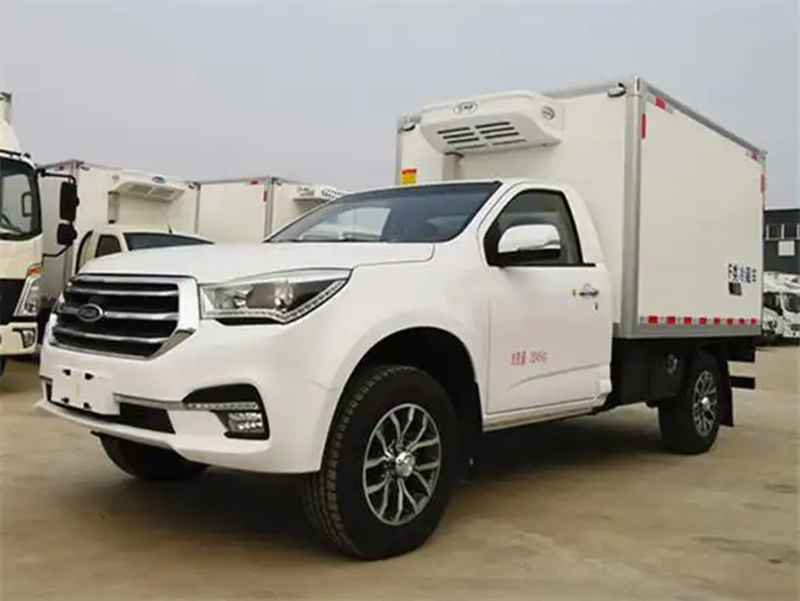

For pharmaceutical delivery, fresh food logistics, seafood transport, and vaccine distribution, a Custom ISUZU Pickup refrigerated version provides controlled temperature stability.
Base Chassis: ISUZU Single/Double Cab Pickup
Engine: 2.5L–3.0L Diesel
Refrigerated Box Volume: 4–8 m³
Box Material: FRP + PU insulation (80–100 mm)
Refrigeration Unit Brand: Thermo King / Carrier / Chinese alternative
Temperature Range: -18°C to +5°C
Power Supply: Independent engine-driven or standby electric unit
Payload Capacity: 800–1200 kg
Multi-temperature compartment
Stainless steel floor
Temperature recorder with GPS monitoring
Rear and side door configuration
This configuration targets distributors requiring small-batch but high-frequency cold chain transport.
For distributors planning local assembly plants or tariff optimization, Custom ISUZU Pickup KD programs provide scalable manufacturing flexibility.
Vehicle fully disassembled
Body panels, chassis, engine, transmission separately packed
High localization potential
Reduced import duties in many regions
Partially assembled body
Engine and drivetrain pre-installed
Lower assembly complexity
Faster production start-up
Assembly Time per Unit: 6–12 hours (SKD) / 15–25 hours (CKD)
Annual Assembly Capacity: 1,000–10,000 units (depending on plant setup)
KD projects are particularly suitable for Africa, Southeast Asia, and South America markets where import structure and industrial policy favor local assembly.
Custom ISUZU Pickup platforms combine:
High-strength ladder frame chassis
Proven diesel engine reliability
Global parts availability
Flexible OEM customization capability
Competitive lifecycle cost
For professional buyers, fleet operators, government agencies, and overseas distributors, customization is not simply modification. It is an engineering solution aligned with operational demand, regulatory compliance, and long-term asset value.
If required, technical drawings, homologation support, and turnkey project consultation can be provided for each configuration.
